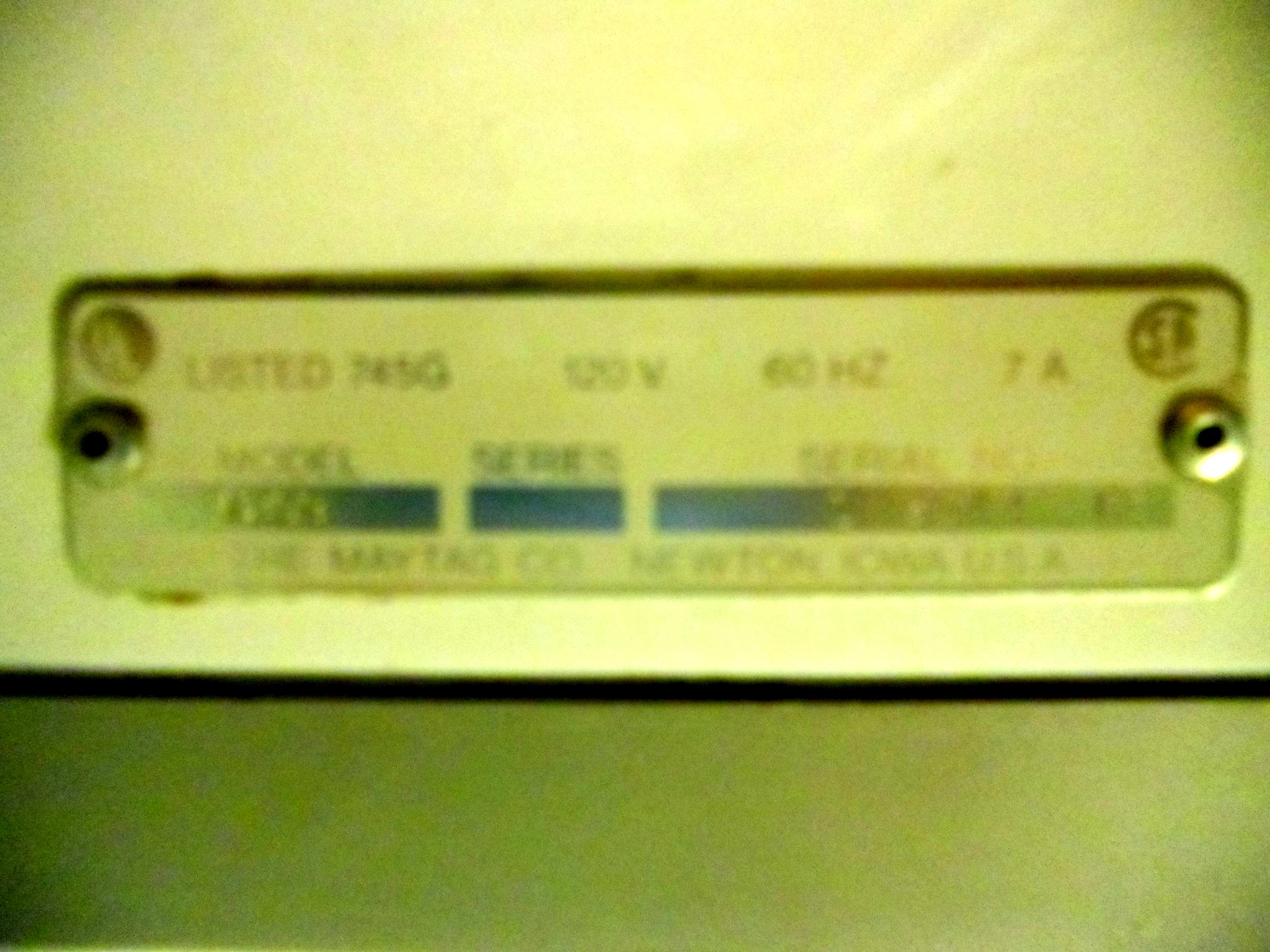

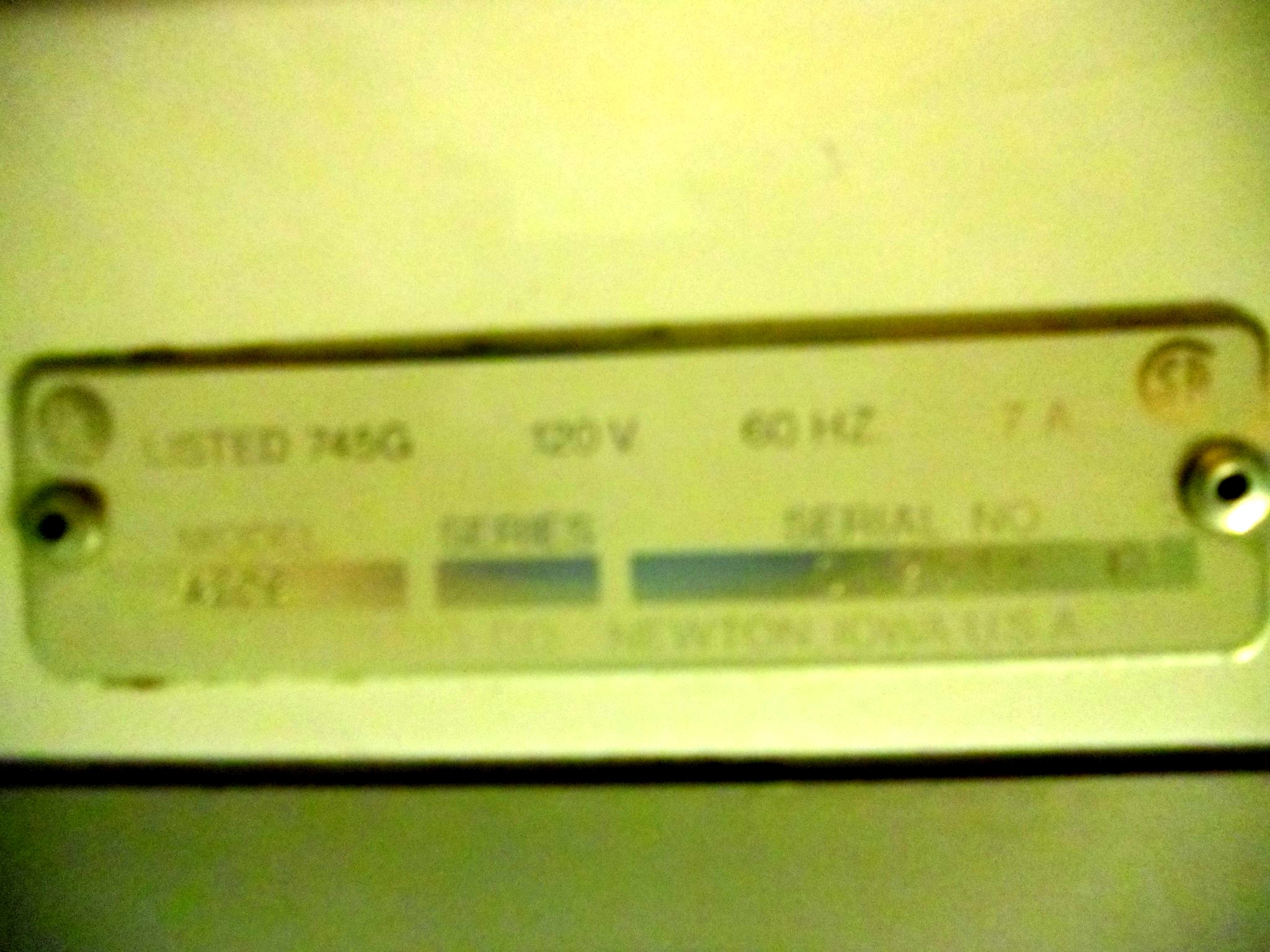

LISTED 745G 120 V 60 HZ
Maytag, Newton, Iowa
Model Serial
A209 089544

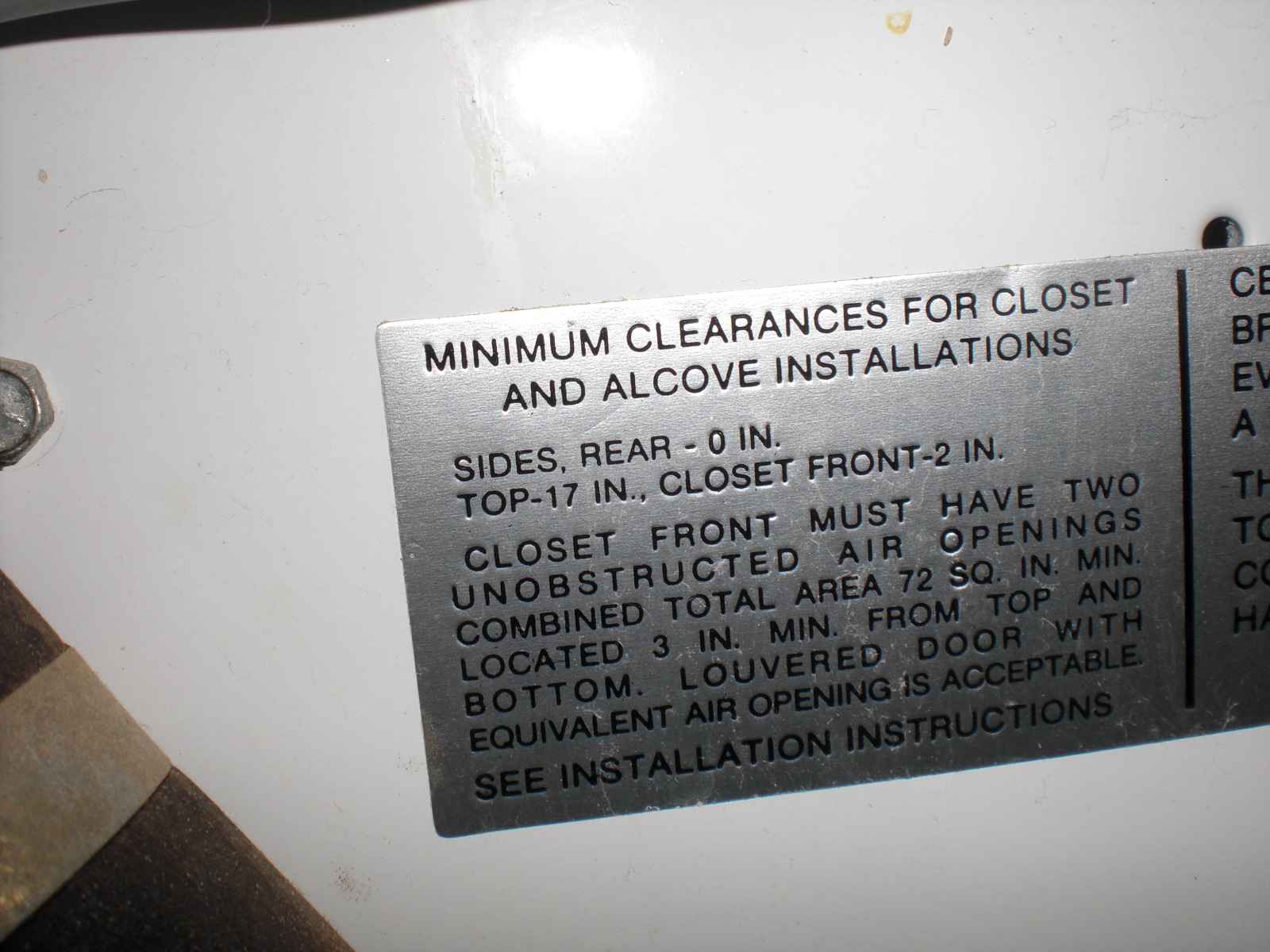

MINIMUM CLEARANCES FOR CLOSET
AND ALCOVE INSTALLATIONS
SIDES, REAR - 0 IN.
TOP-17 IN., CLOSET FRONT-2 IN.
CLOSET FRONT MUST HAVE TWO UNOBSTRUCTED AIRE OPENINGS COMBINED TOTAL AREAS 72
SQ. IN. MIN. LOCATED 3 IN. MIN. FROM TOP AND BOTTOM. LOUVERED DOOR WITH
EQUIVALENT AIR OPENING IS ACCEPTABLE
SEE INSTALLATION INSTRUCTIONS.
CET APPAREL ...

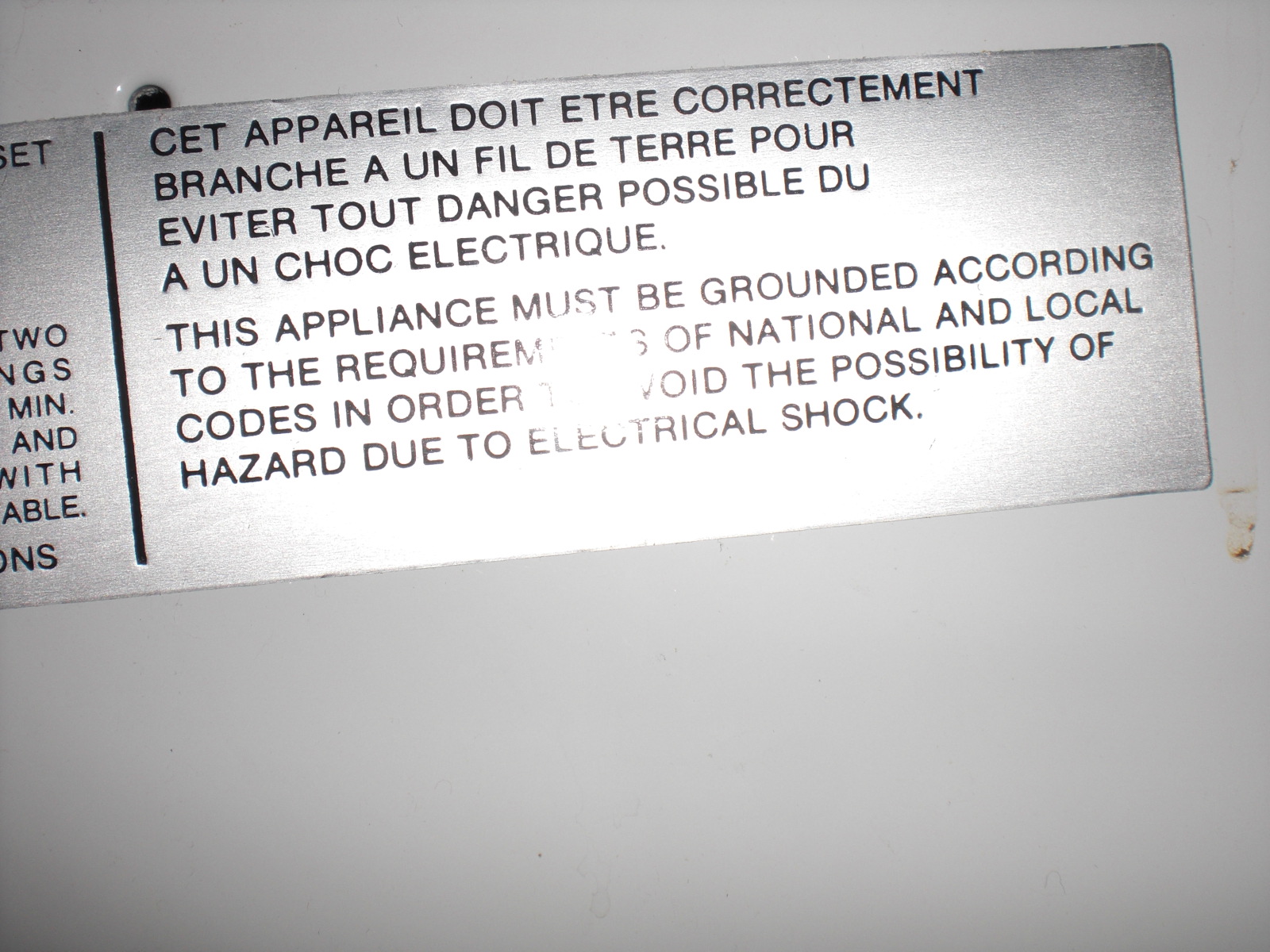

THIS APPLIANCE MUST BE GROUNDED ACCORDING TO THE REQUIREMENTS OF NATIONAL AND LOCAL CODES IN ORDER TO AVOID THE POSSIBILITY OF HAZARD DUE TO ELECTRICAL SHOCK.

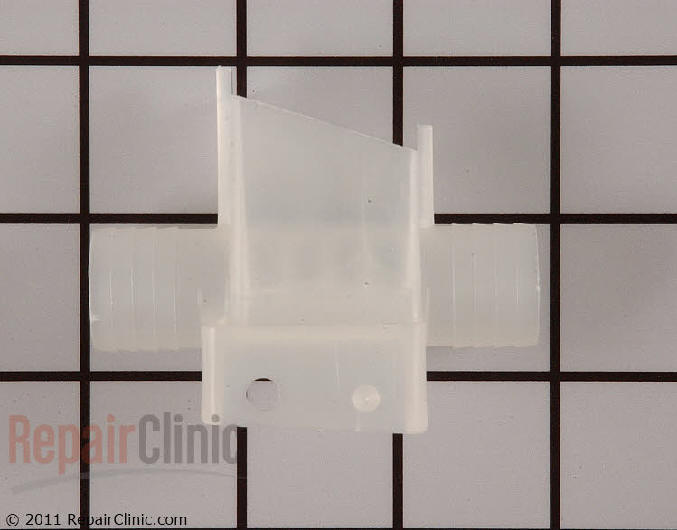

Injector Tube WP22213057

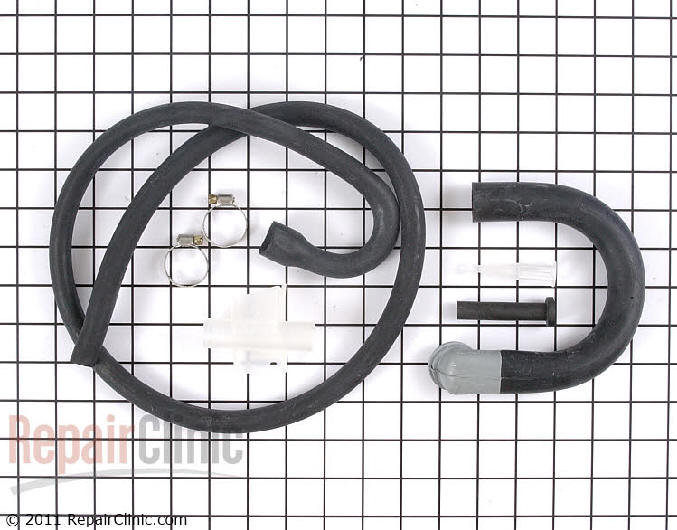

Injector Tube 204660

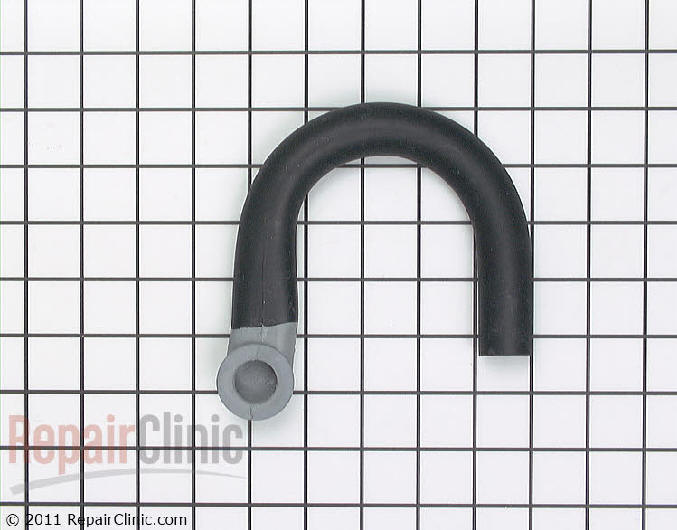

Injector Tube 206154

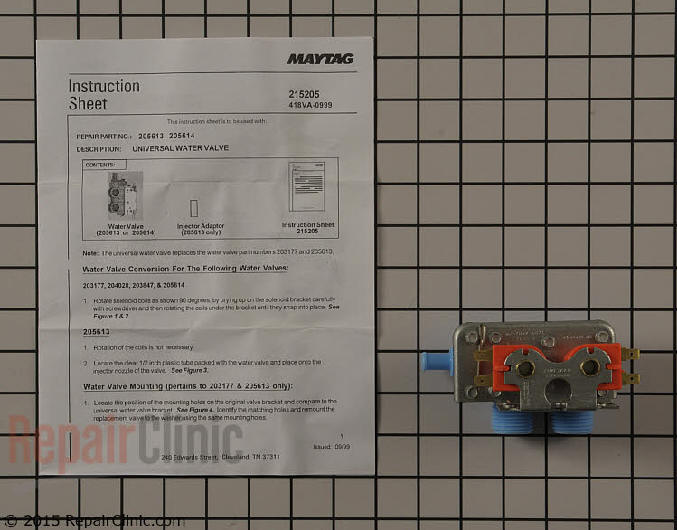

Water Inlet Valve 205613 $53.12

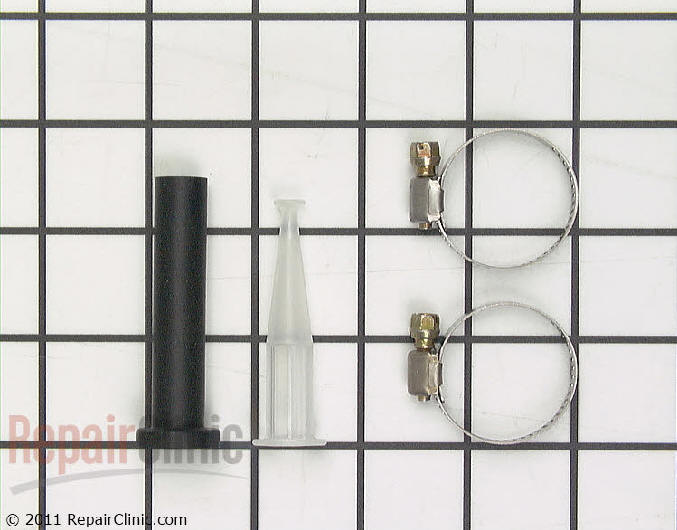

Injector Tube 12001677
RepairClinic Item #400646 | Whirlpool OEM Part #12001677
