2018-09 Menards, Atlas Glassmaster, Desert Shake, 3-tab shingles, 26 per bundle, 30 year warranty, 68.3 pounds
 FairfieldIowaHouse.Com |

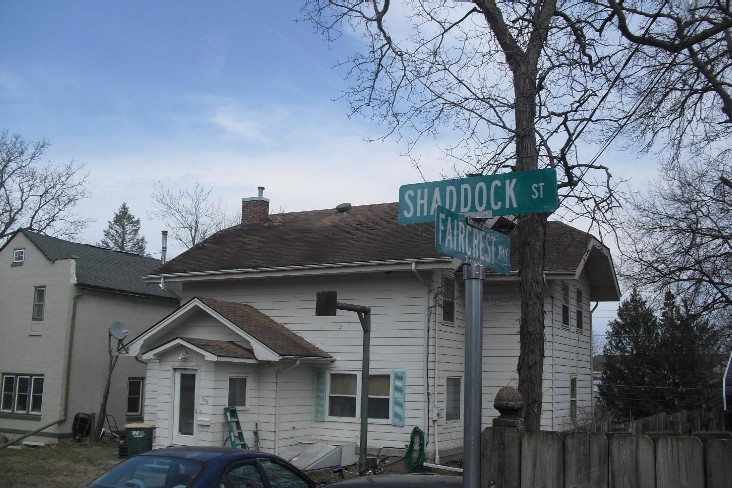

 1 Shaddock Street |

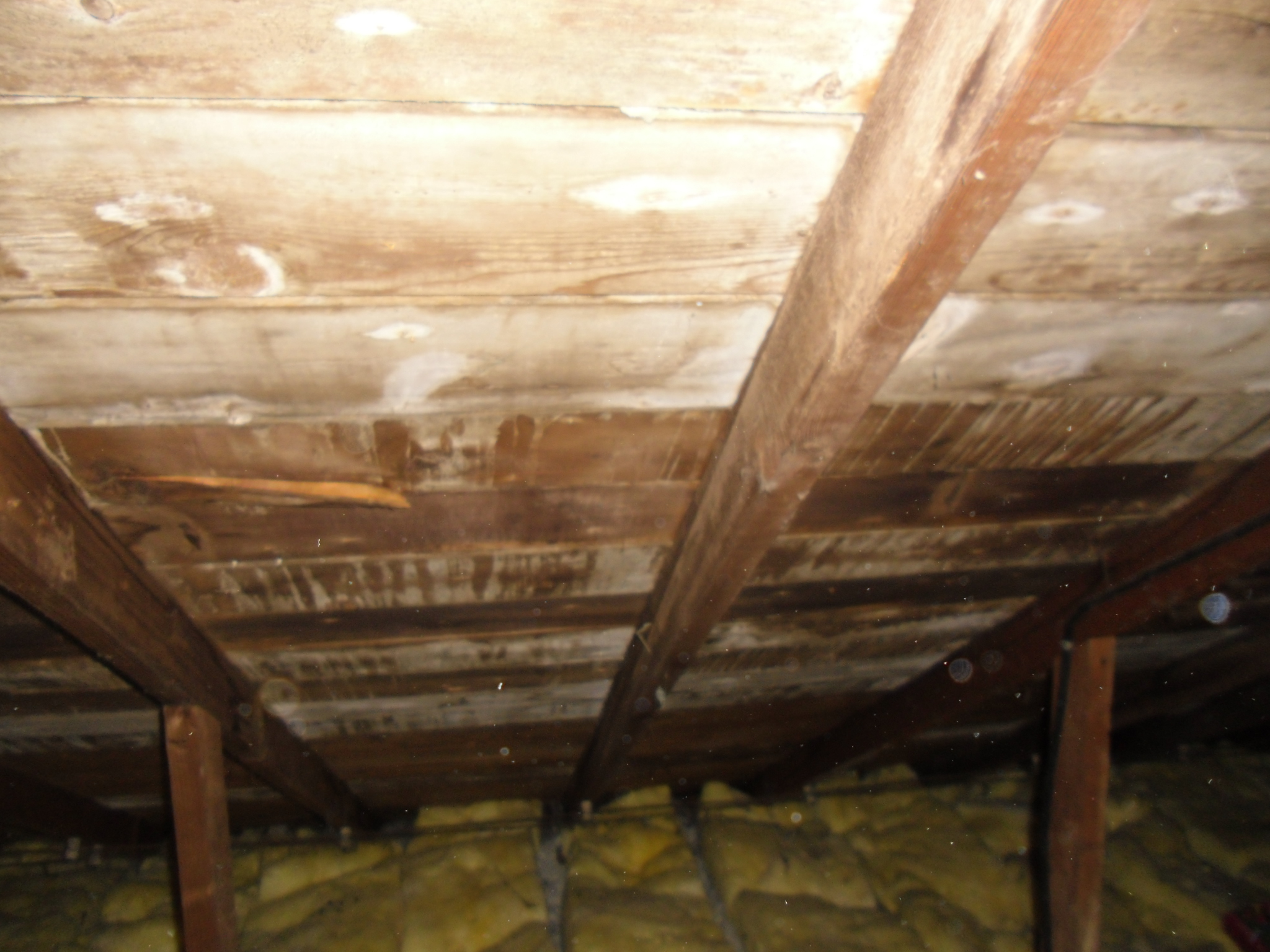

 Old roof is deteriorating |
 Menards - Desert Shake shingle bundles on pallet |
 Menards truck arrives with the tiles |
 Turns on to Shaddock Street |
 Truck is also a fork lift |
 Pallets of tiles delivered to the back yard |
 The bottom tile is in good condition |
 Tiles are distributed to 3 bundles high Stored on the concrete areas from years ago |

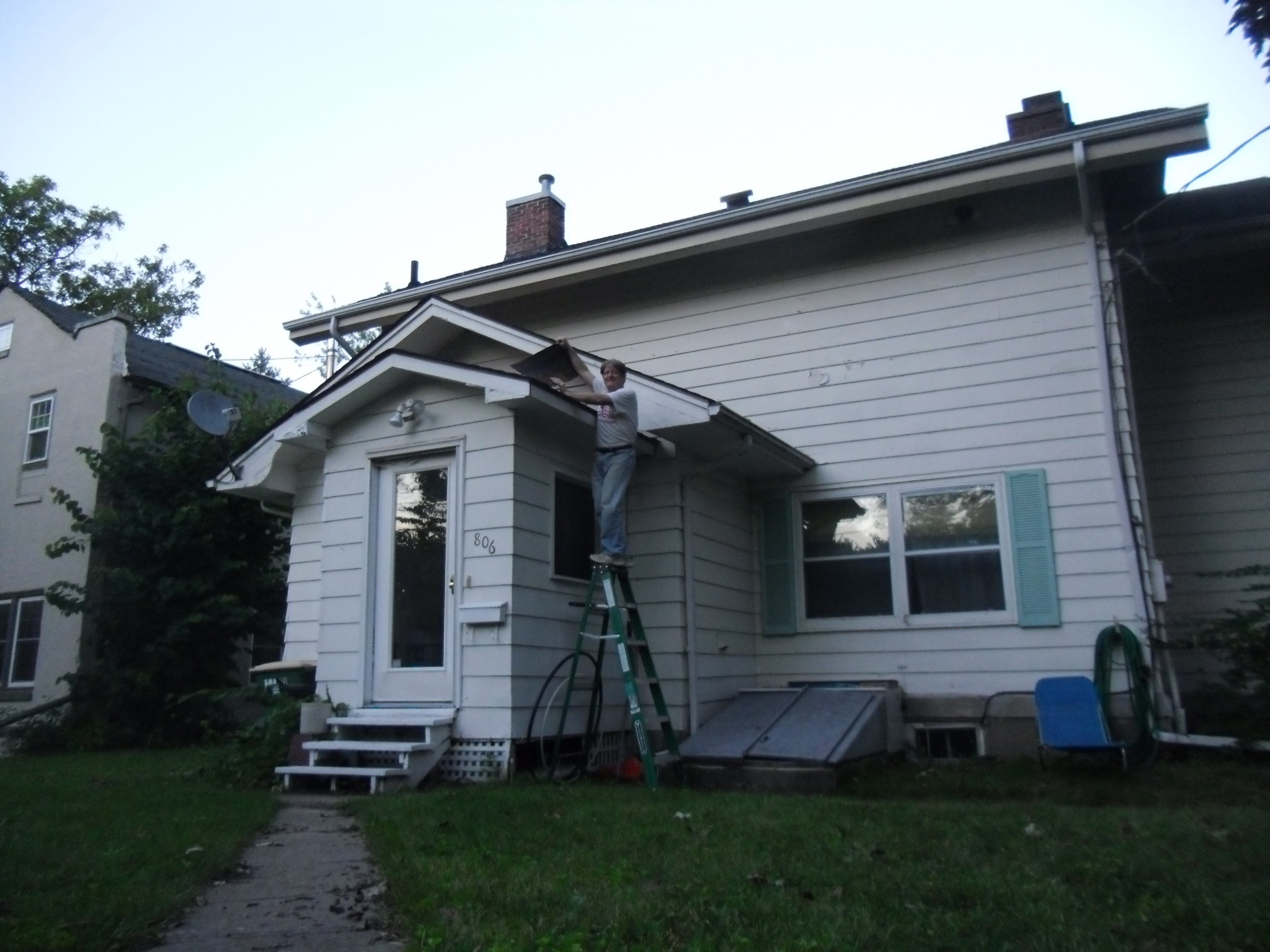

 First tile changes at 806 N 4 by Rick |
 A board needs reinforcing on left |
 |
 |
 |
 6.8 pitch roof 30o angle |
 |
 |
 Trigonometry calculates small roof is 25 degrees |
 Safety first - foot support |
 Old tiles |
 New tiles |
 |
|
 Top 1 foot shingles cut from 3 tab |
 Kitchen South roof finished |
 |
 |
 Wood under the black felt paper |
 ProArmor paper in middle for unrolling N and S |
 Underlayment rolls 1. Titanium UDL25 by InterWrap $115 2. ProArmor by Owens Corning $79 3. Eaveguard by Henry $57 4. Felt 15 by Keosauqua Lumber $15 |
|
 Covering up for rain |
 Old mop comes in handy to remove old shingles |
 Rick made a Tile Ladder Shingle Lifter 1.0 with wheels on two boards |
  Rope and pulley on Shingle Lifter 1.0 up the ladder on wheels https://www.youtube.com/watch?v=hHLklBi9agI |
|
Making a notch in the shovel so it can bring up nails |
|
 Electric saw makes a notch in the shovel |
 Drill expands notch so the nail fits |
 Nail fits in the shovel |
 Removing nails with the shovel |
 On top of the roof |
 Anchor at the top for the rope |
|
Fasten yellow strap and ropes to attic ceiling board, through vent |
 Yellow strap comes out the vent |
 Yellow strap hangs down from the vent |
 6 rows completed in the middle |
