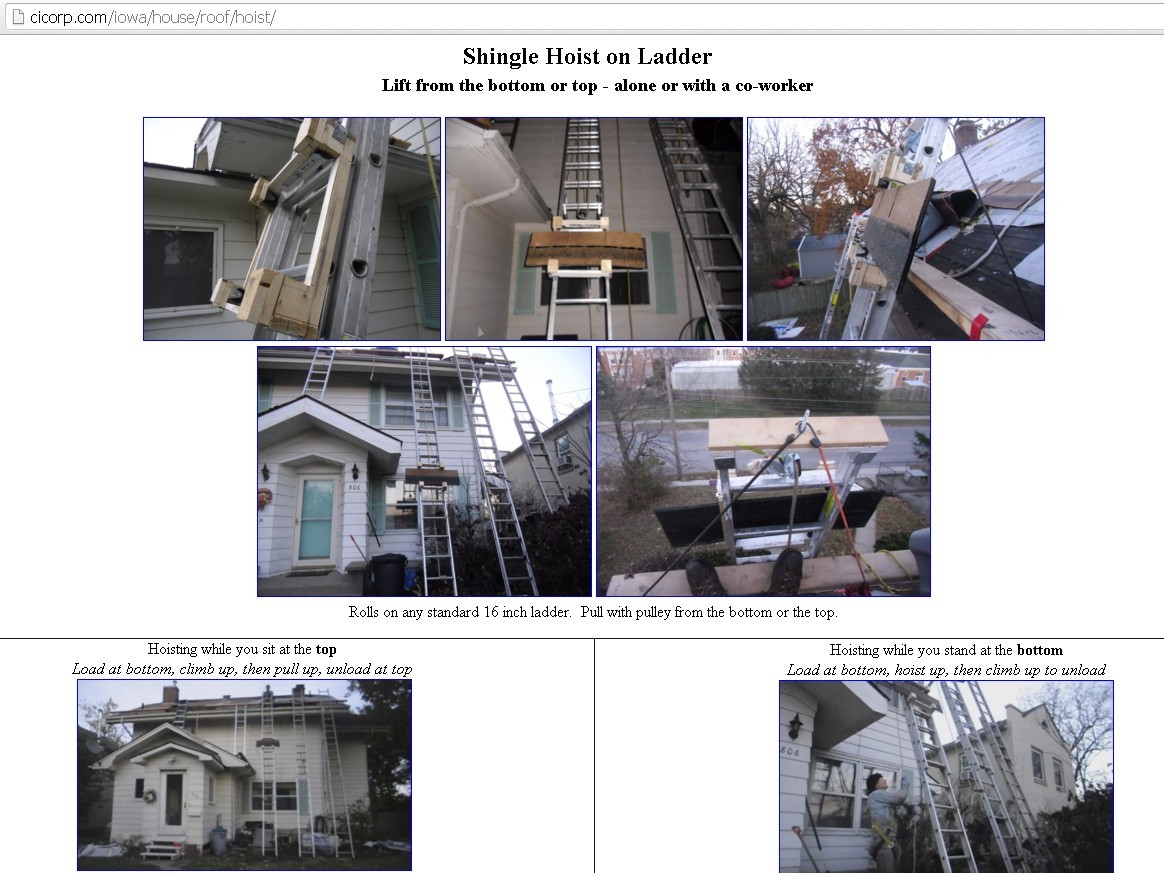

Shingle Hoist on Ladder
Lift from the bottom or top - alone or with a co-worker

Rolls on any standard 16 inch ladder. Pull with pulley from the bottom or the top.

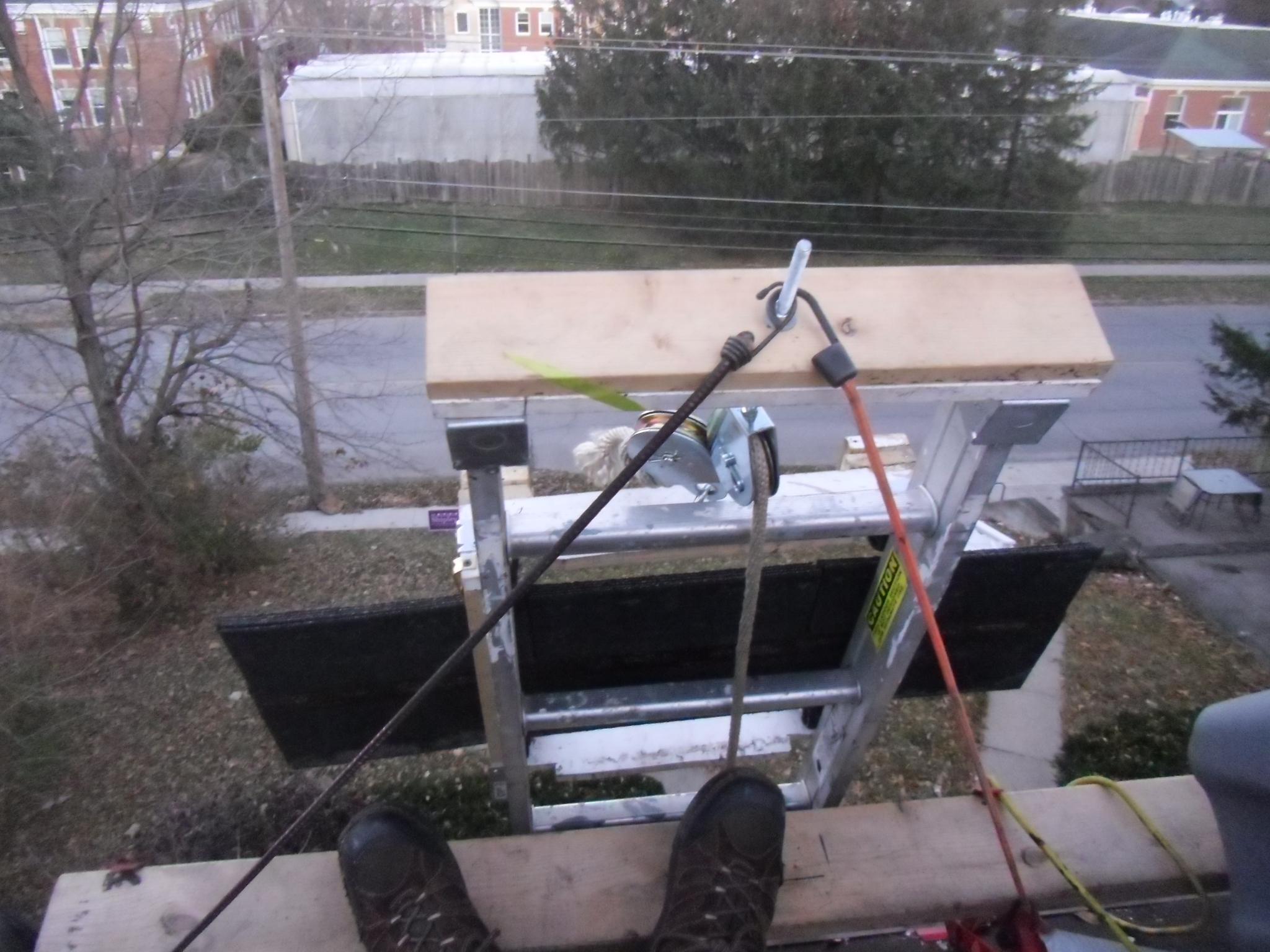

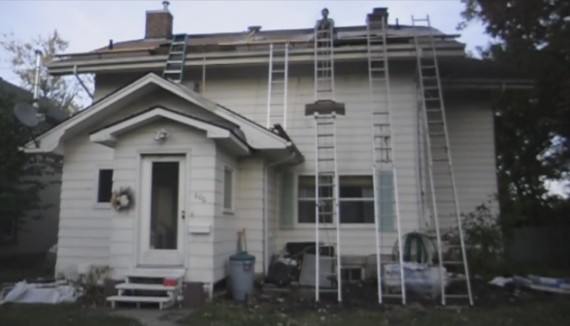

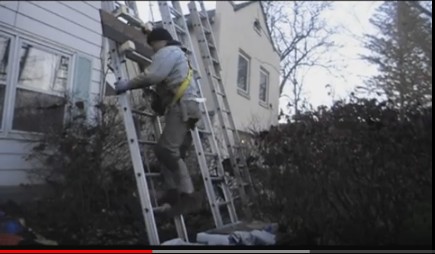

Hoisting while you sit at the top Load at bottom, climb up, then pull up, unload at top www.youtube.com/watch?v=LNAwSLiFKBY	Hoisting while you stand at the bottom Load at bottom, hoist up, then climb up to unload www.youtube.com/watch?v=MWw9rxJAqRs

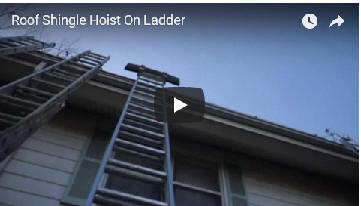

	https://www.youtube.com/watch?v=fMNXv_SjkhA

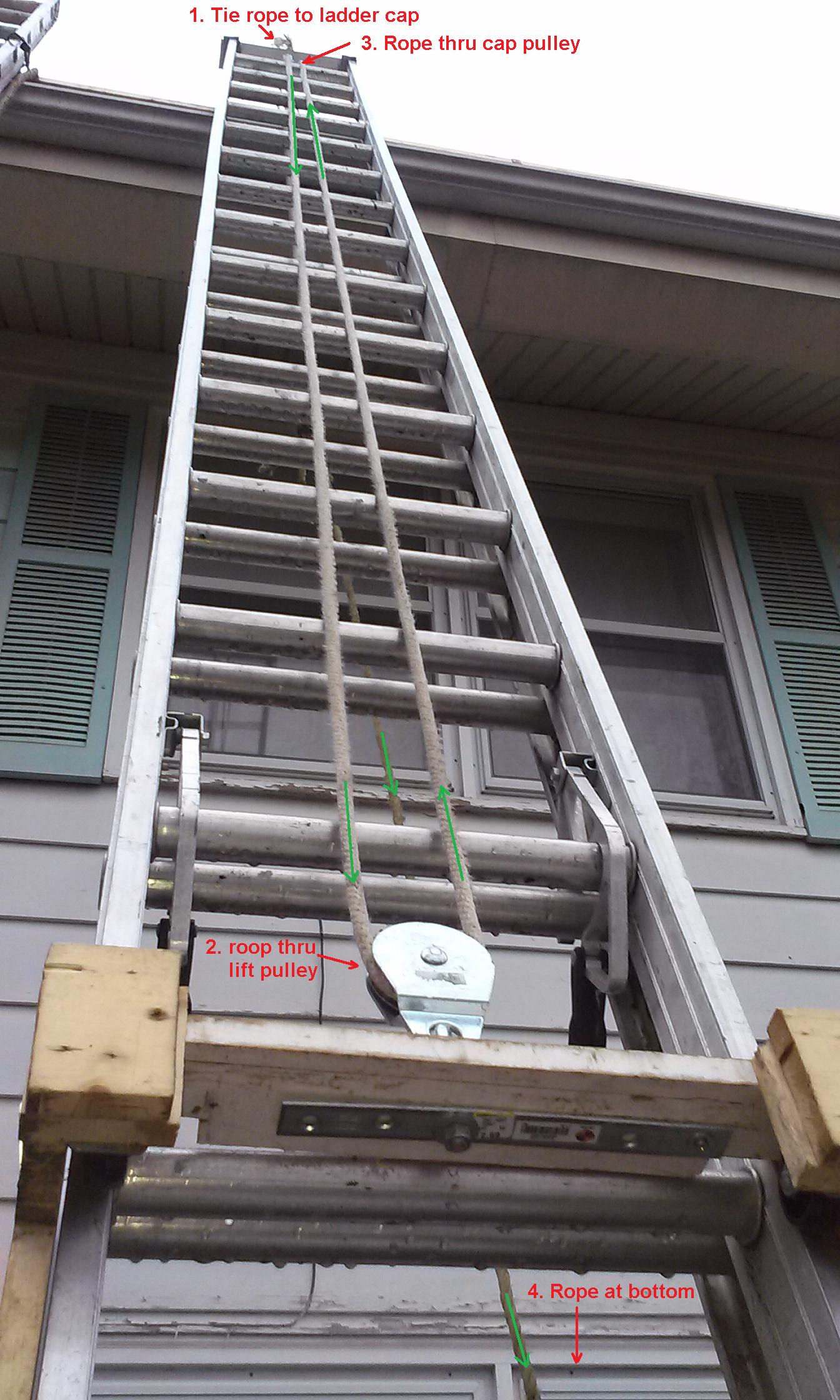

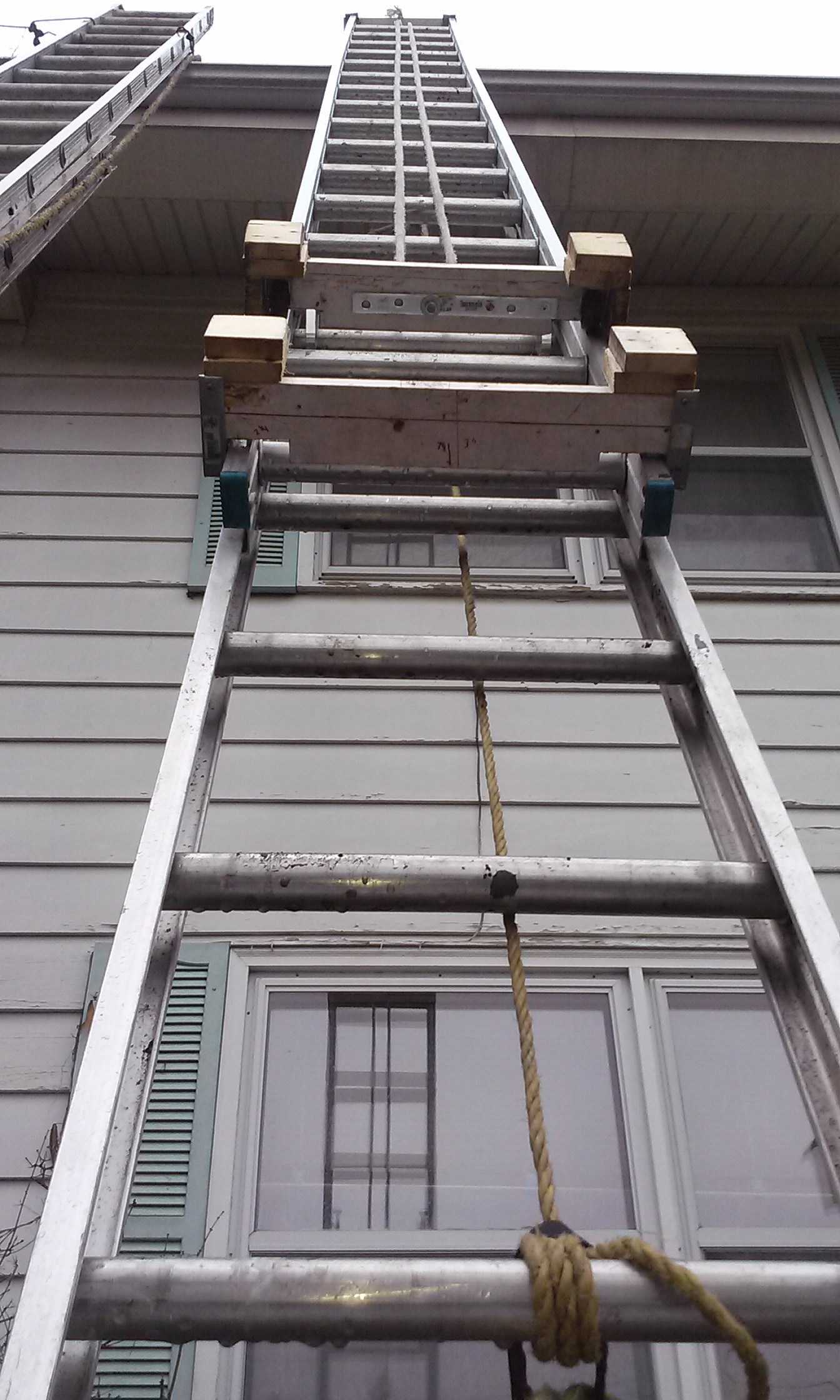

Two pulleys reduce the apparent weight of the shingles in half

Rope goes from 1) ladder cap top, 2) down through SHOL pulley
3) back up to the ladder cap pulley, then 4) down to the ground

4) rope can be tied to a ladder rung
to stop the SHOL at the loading position

Video transcript

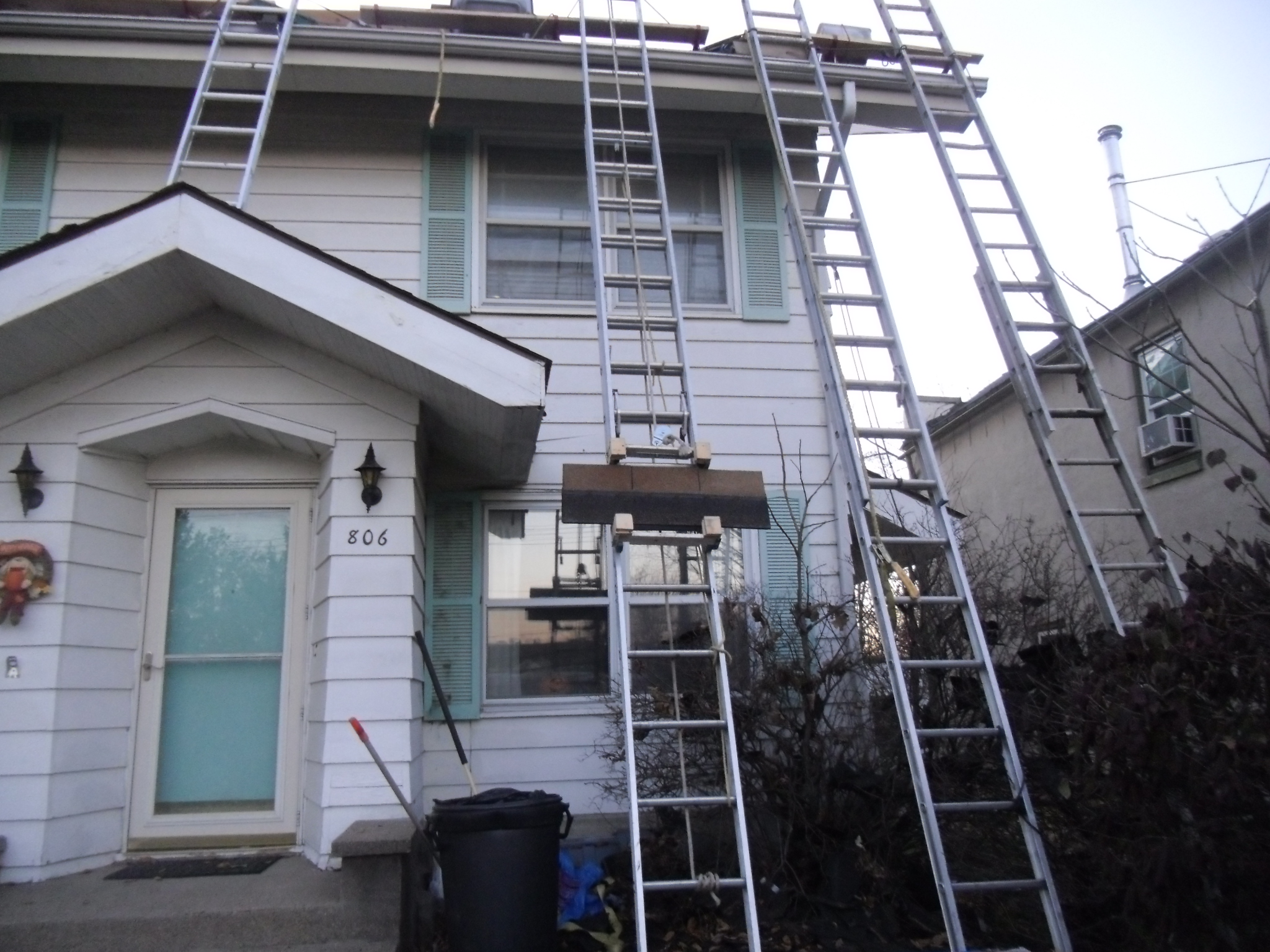

Fits on a standard ladder

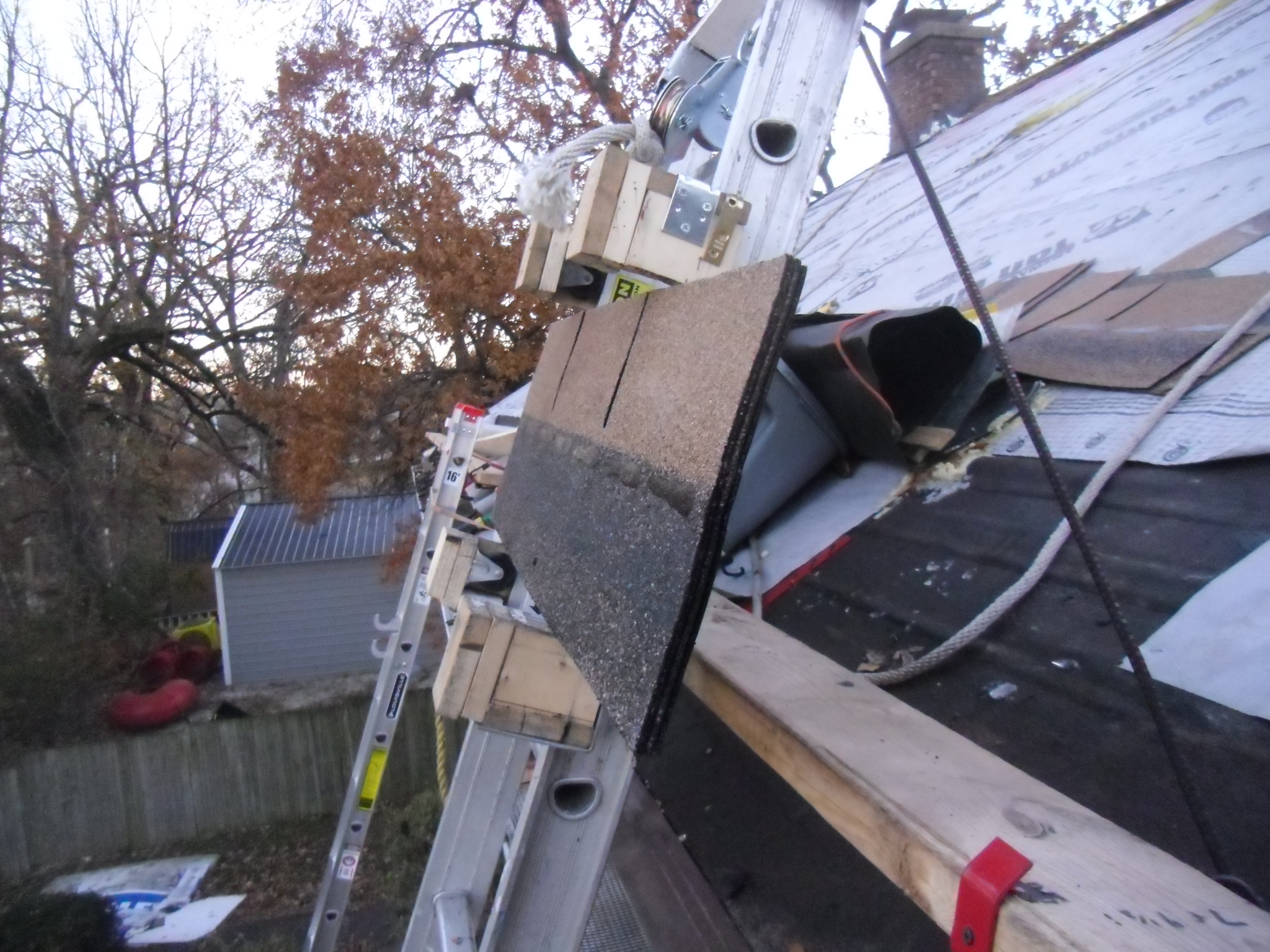

Hoist shingles horizontally up to roof

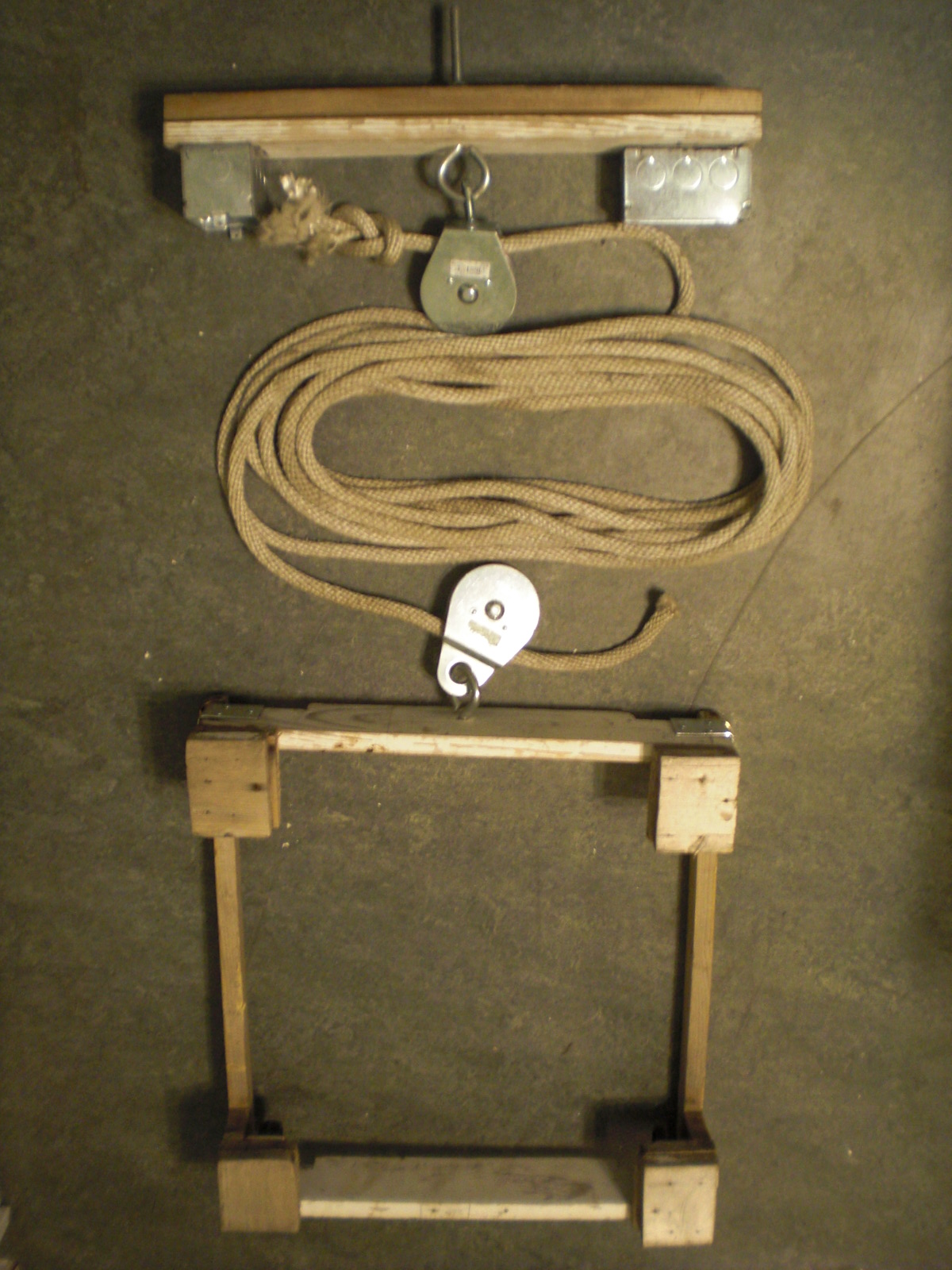

Simple design you can make

Materials: wood and wheels
2 boards 1" x 4" x 12'
4 caster wheels
2 pulley wheels
2 eye bolts
rope
nails
Total $35

Inexpensive
Less than cost of hiring helpers
Easy to make
Light to carry
No change to your ladder
No motors needed
Center of gravity safe

Here are 3 unsafe roofers
and guys carrying 4 bundles, 320 pounds
Dangerous and stupid. Let's use our brains.

Falls are leading cause of death
90% home owner do it yourselfers.
It makes sense to automate this process.

Youtube has some options

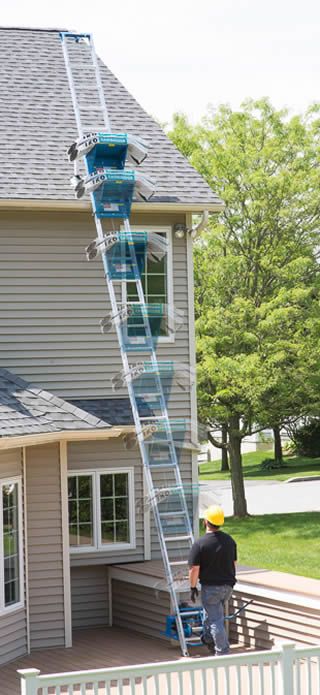

You could buy one for thousands of bucks
like Tranzporter, but I only need this once

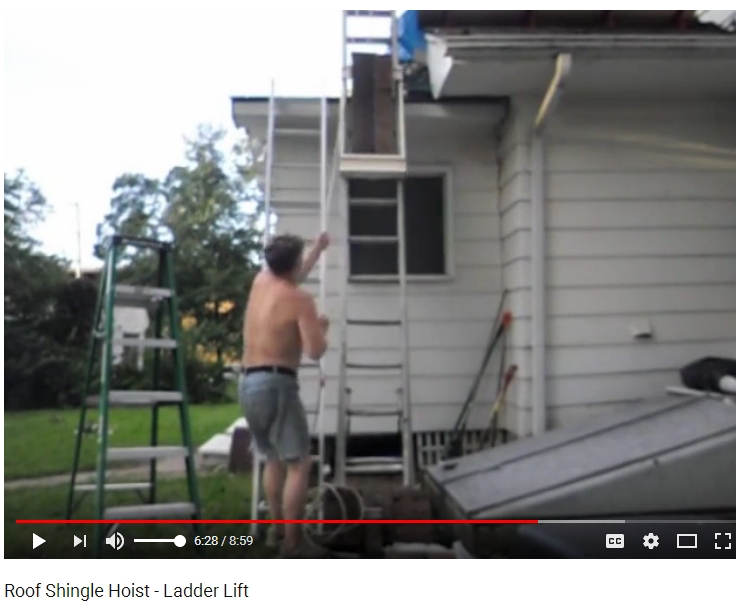

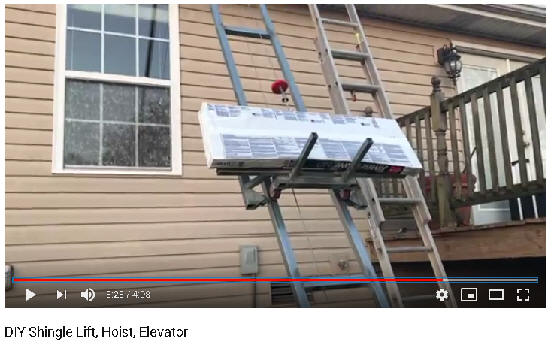

Or make one like this out of wood
Or adapt your ladder with a motor
But I wanted something simple

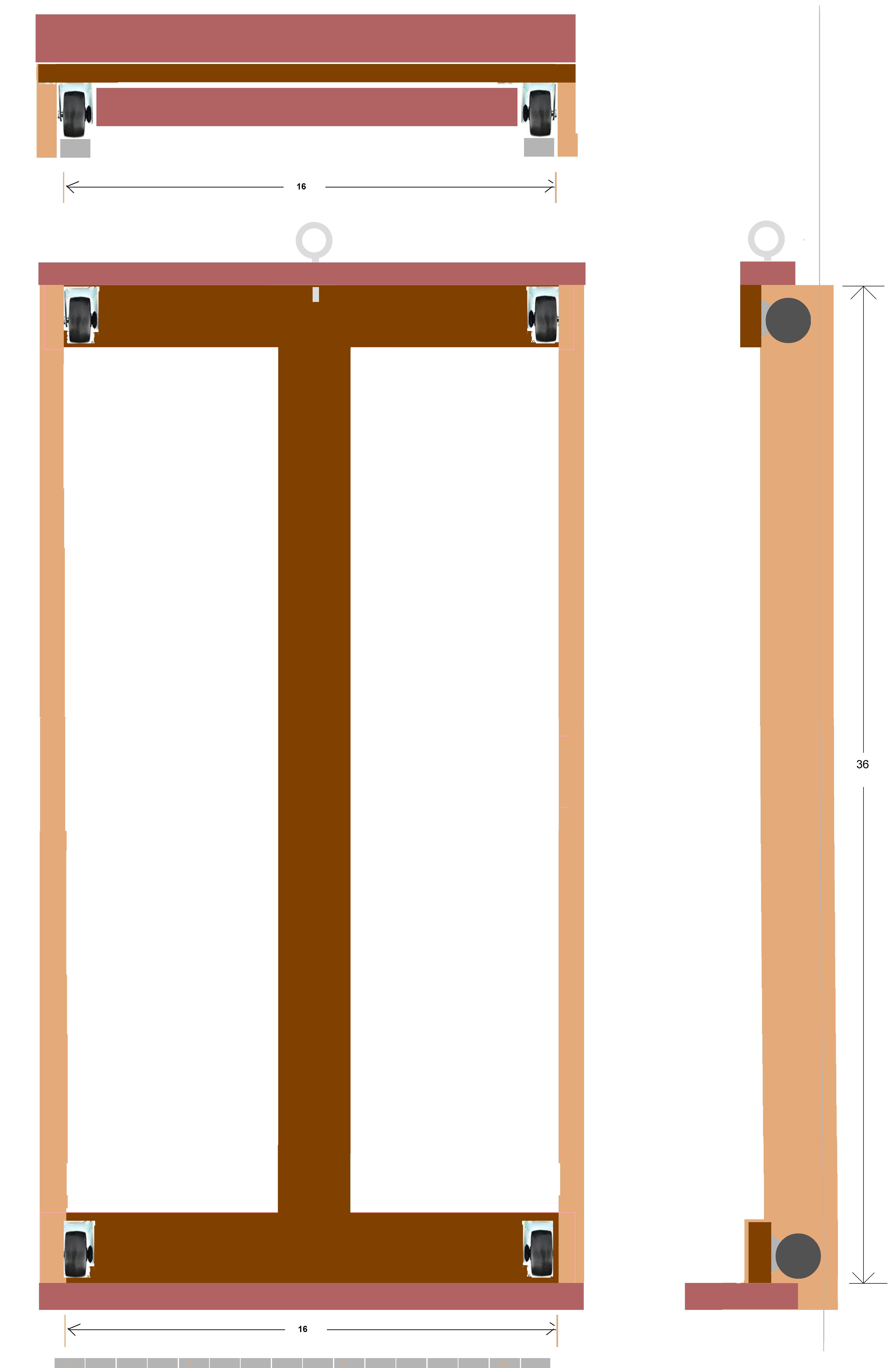

I screwed caster wheels
costing just a few bucks
to a 1 by 4 board
16 inches apart to run on the ladder

Easy to make and use.
Enjoy and be safe!
